# Pinout

## V1

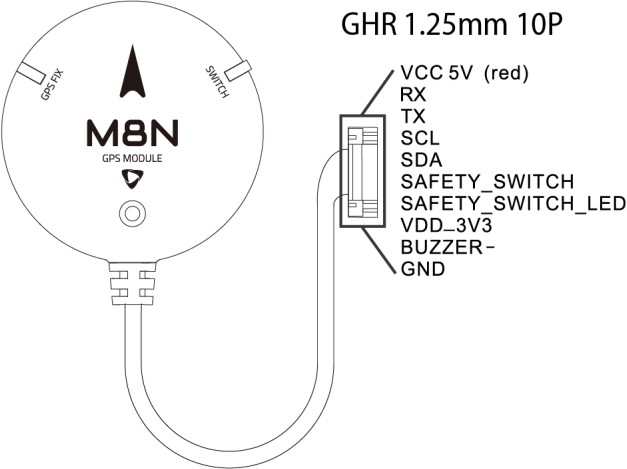

<table data-header-hidden data-full-width="true"><thead><tr><th></th><th></th></tr></thead><tbody><tr><td><p><strong>Stanard</strong> (JST GHR1.25mm 10</p><p>pin cable)<strong>:</strong></p><p>This JST GH 10Pin connector can be use d on Pixhawk Series 10pin“GPS Module” or "GPS1" input port.</p></td><td><img src="https://2367252986-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FLIgtGDAvVGkCKGOJb1bR%2Fuploads%2FtQT7VRwIqnJta4LLgNVo%2F2?alt=media" alt="" data-size="original"></td></tr><tr><td><p><strong>Secondary</strong> (JST GHR1.25m m 6pin cable)<strong>：</strong></p><p>This JST GH 6Pin connector can be used on Pixhawk Series 6pin“UART &#x26; I2C”or " GPS2" input port as secondary GPS.</p></td><td><img src="https://2367252986-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FLIgtGDAvVGkCKGOJb1bR%2Fuploads%2FfD367Vbxv7OgRtCVYykG%2F4?alt=media" alt="" data-size="original"></td></tr><tr><td><p><strong>For Pix32/Pixhawk1/2.4.6/2.4.8</strong> (Molex1.25mm 6pin &#x26; 4pin &#x26;3pin cable)<strong>:</strong></p><p>These Molex connectors are for Pix32 "Switch", "GPS", and "I2C" input ports.</p></td><td><img src="https://2367252986-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FLIgtGDAvVGkCKGOJb1bR%2Fuploads%2F11TvDATYZ4o27XjyLwzK%2F3?alt=media" alt="" data-size="original"></td></tr></tbody></table>

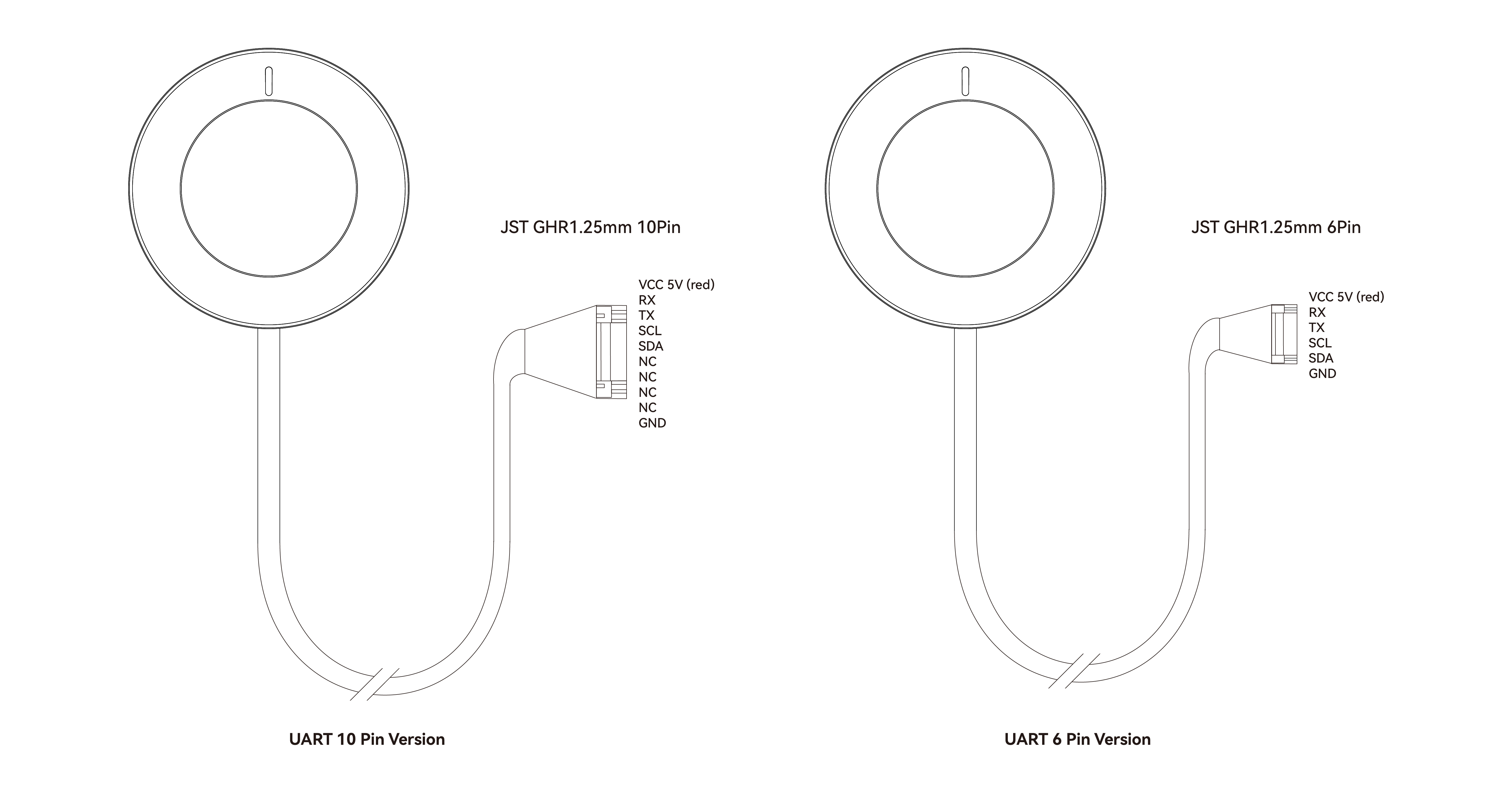

## V2

<figure><img src="https://2367252986-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FLIgtGDAvVGkCKGOJb1bR%2Fuploads%2FPeQYHP6MXv2QeEHlvrnt%2FM9N-V2_pinout.jpg?alt=media&#x26;token=b60ef113-85be-4a49-8194-d483471fe3a4" alt=""><figcaption></figcaption></figure>

Note: Pinout is the same for M9N GPS Module
