Installation of RPi CM4

To install Raspberry Pi CM4 companion compute onto this baseboard.

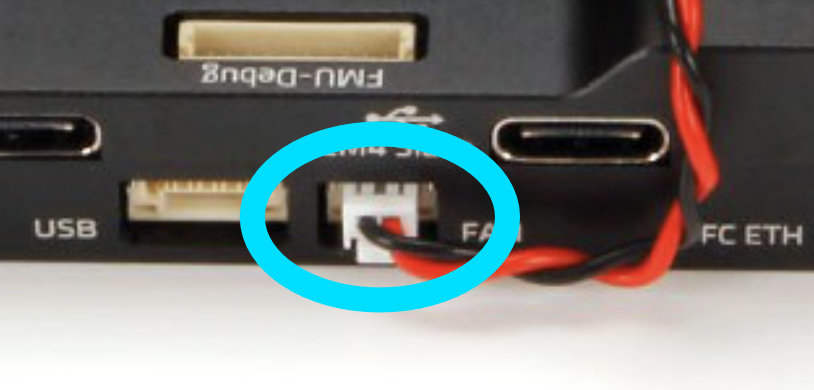

  • Disconnect the FAN connector.

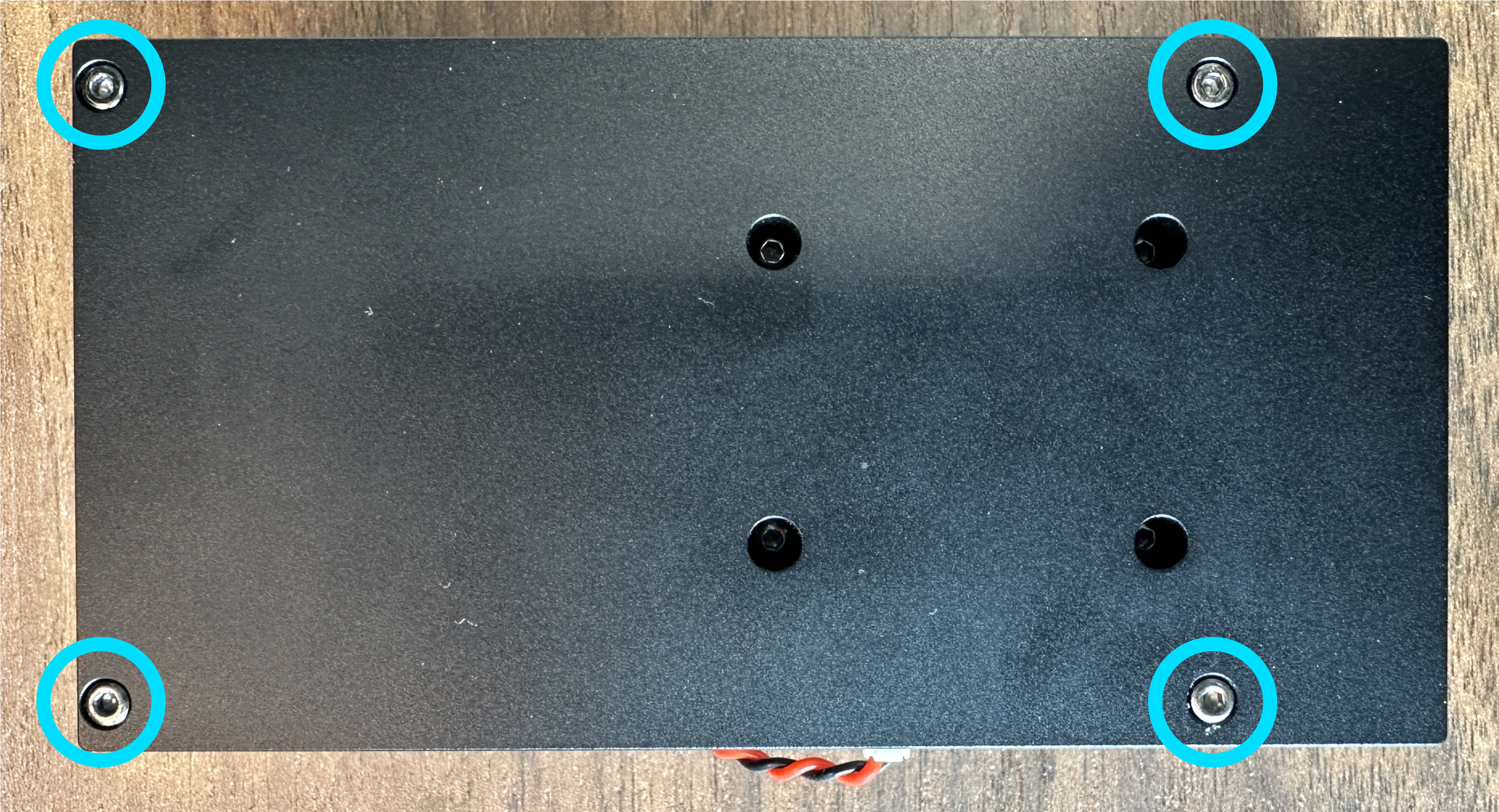

  • Remove these 4 screws on the back side of the baseboard.

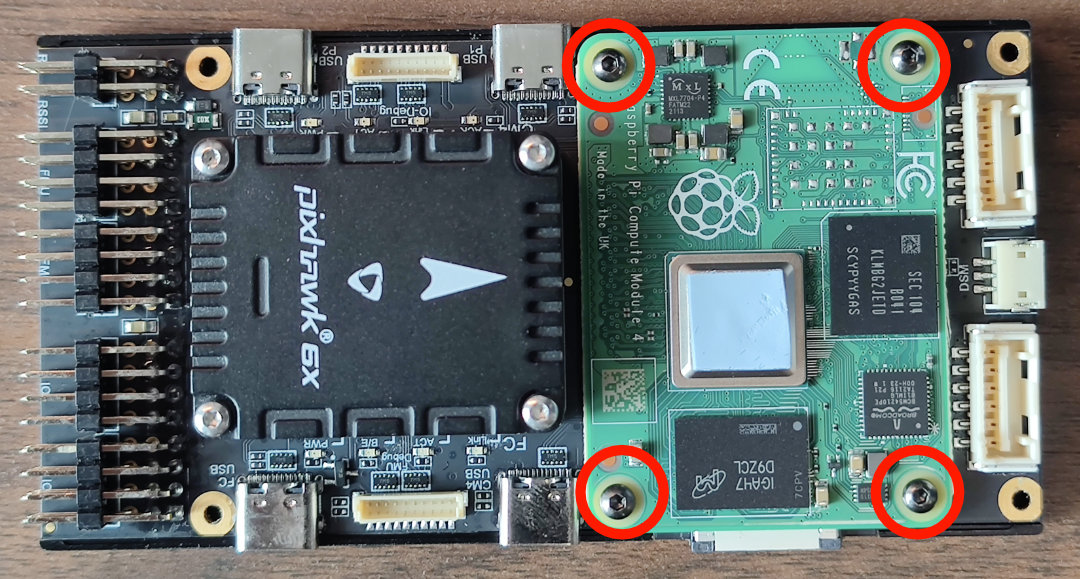

  • Remove the case of the baseboard, install the CM4 and screw on the 4 screws.
